DimmerMaster

Shoebox Truss-Mount Dimmers

DMX or Analog

The DimmerMaster Shoeboxes are a line of very compact and rugged truss-mount dimmers with a variety of power in and out options. They all accept DMX Digital and 0-10V Analog inputs.

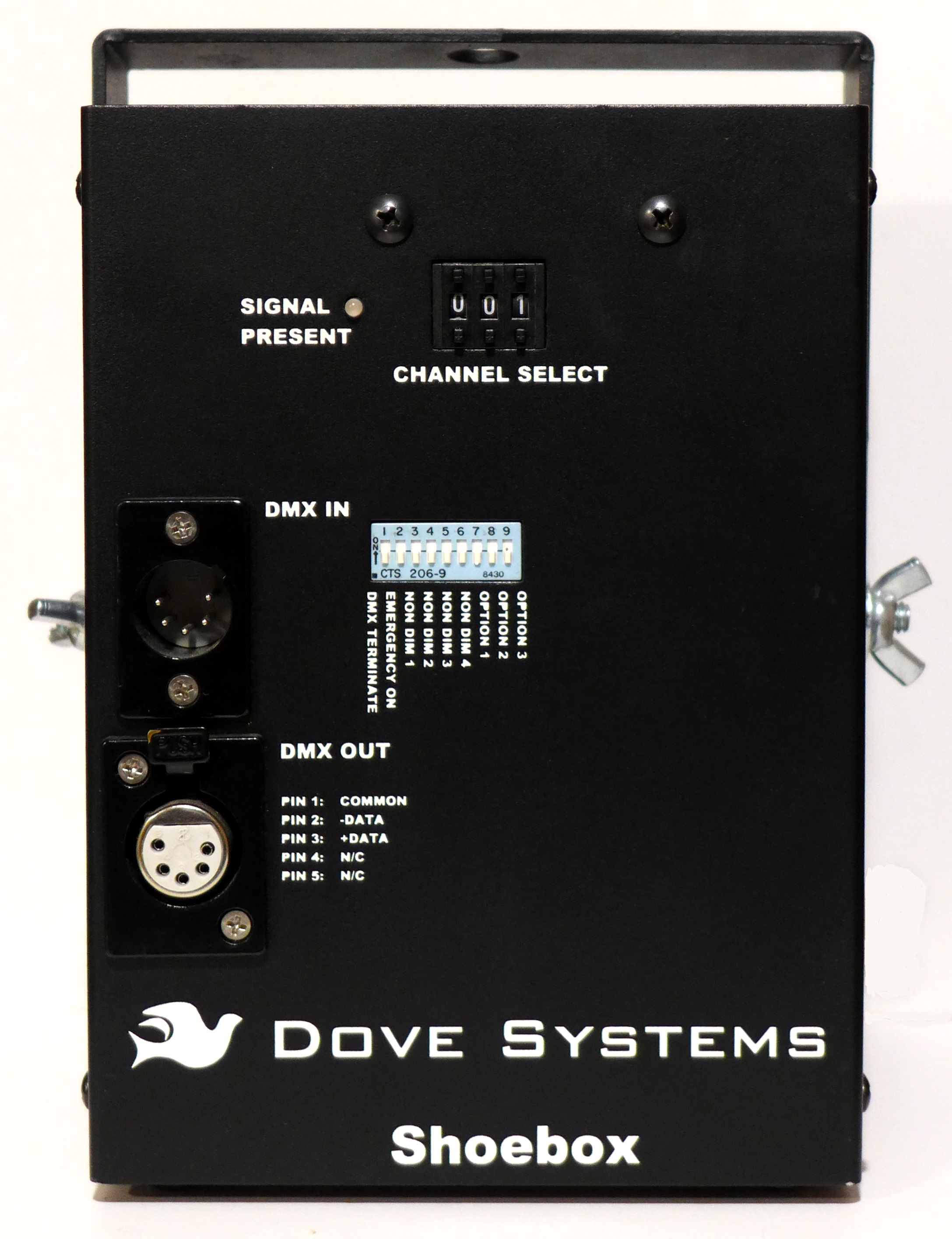

The DimmerMaster Shoebox truss-mount dimmers come in a variety of configurations with 1 or 4 channels and power capacities. They may be pipe or tree mounted and are perfect for tight spaces. The units accept either DMX-512 (by default) or 0 to +10VDC control signals. The starting (or single) channel is set on a thumbwheel switch, which also provides load testing and local control. A status LED indicates the presence of a DMX control signal. With both male and female XLR connectors, the control signal may be daisy-chained from pack to pack.

All dimmers in this family measure just over 7” x 5” x 4” (not including the rubber feet, U-bracket, and mounting studs) and weigh about 5 pounds.

Some “dimmable” LED bulbs flicker when dimmed with triac based dimmer packs. In some cases, this effect can be mitigated by adding parallel resistors. 4.7kΩ output resistors are available by request on the entire DimmerMaster series. We are happy test customer supplied bulbs on a Shoebox before committing to an order.





Click Price to Buy

DM406-SUG

  • 15 Amp U-Ground Inlet

  • 1.8kW maximum total capacity

  • Four 1000W Dimmers

  • U-Ground Outlets

DM408-SUG

  • 20 Amp Twistlock Inlet

  • 2.4kW maximum total capacity

  • Four 1000W Dimmers

  • U-Ground Outlets

DM410-SUG

  • 30 Amp Twistlock Inlet

  • 3.6kW maximum total capacity

  • Four 1000W Dimmers

  • U-Ground Outlets

DM124-DUG

  • 20 Amp Twistlock Inlet

  • 2.4kW maximum total capacity

  • One 2400W Dimmer

  • Dual U-Ground Outlets



Wall Mount Dimmers

The DimmerMaster wall-mount dimmers are rugged dimmer packs with 1 or 4 channels and up to 2400 watts per channel to be mounted in 8x8 junction boxes. Each unit has both DMX-512 and analog (0 to +10VDC) control inputs. This allows these dimmers to be used with both DMX controllers like the IQ series and analog controllers like the House Light Controllers simultaneously. A status LED indicates the presence of a DMX control signal.

Some users may want the convenience of a factory installed "ForceOn" switch on the dimmer's front panel so lights can be turned on without the need for remote consoles, while others don't want to have the possibility of a hardwired switch being left in the incorrect state or accidentally being bumped at the wrong time. We now offer either option at the time of purchase.



DM124-WM

The DimmerMaster 124 wall-mount dimmer is a compact unit with one 2400W dimmer. The units accept DMX-512 control and analog 0-10VDC control. The starting channel is set on a thumbwheel switch, which also provides load testing and local control. A status LED indicates the presence of a DMX control signal. Each channel is protected by a circuit breaker conveniently located on the front panel for quick access. All power and control connections are made on terminal blocks. Fits in a standard 8" X 8" X 4" screw cover enclosure (not included).

Features

  • One 2400W Dimmer

  • DMX 512 and 0 to +10VDC control

  • Power input: 120VAC 50/60Hz 20 amp max, 220V optional

  • Option for Power Indicator or Force-On Switch

  • Internal thumbwheel starting channel select switch

  • Internal non-dim, full-on, and DMX terminate switches

  • Internal local control & load testing

  • Signal present LED

  • Dim. 8" X 8" X 4", 6 pounds

  • One year warranty

Click Price to Buy

DM412-WM

The DimmerMaster 412 wall-mount dimmers are very compact units with four 1200W dimmers. The units accept DMX-512 control and analog 0-10VDC control. The starting channel is set on a thumbwheel switch, which also provides load testing and local control. A status LED indicates the presence of a DMX control signal. Each channel is protected by a circuit breaker conveniently located on the front panel for quick access. All power and control connections are made on terminal blocks. Fits in a standard 8" X 8" X 4" screw cover enclosure (not included).

Features

  • Four 1200W Dimmers

  • DMX 512 and 0 to +10VDC control

  • Power input: 120VAC 50/60Hz 40 amp max, 220V optional

  • Option for Power Indicator or Force-On Switch

  • Internal thumbwheel starting channel select switch

  • Internal non-dim, full-on, and DMX terminate switches

  • Internal local control & load testing

  • Signal present LED

  • Dim. 8" X 8" X 4", 6 pounds

  • One year warranty
